10 inch PDU
ENERGIS
Managed PDU for 10 inch rack environments.
ENERGIS is a compact managed power distribution unit for lab racks, test benches, and automation setups that need switched AC outputs, network control, and power monitoring in a 10 inch rack format.
Available soon
Power control for compact rack and lab setups.
ENERGIS is intended for setups where individual AC outputs need to be switched, monitored, and controlled from the network without moving to a full-size rack PDU.
Specifications
Core product information for the ENERGIS 10 inch variant.
Input 110-230 VAC
Outputs 8x 110-230 VAC switched outputs
Load rating 10 A per output, 10 A maximum total load
Per-output monitoring
- Voltage
- Current
- Power
- Uptime
Protection Overcurrent protection with hysteresis
Network 100Base Ethernet
Interfaces
- USB-CDC UART
- Web UI
- SNMP
- Metrics/Prometheus
Manual control Front panel control for local operation
Presets
- 5 user presets
- One preset assignable as startup configuration
Power state Sleep mode support
Electrical variants
Regional electrical configurations for ENERGIS.
EU, IEC/ENEC
- Input: 230VAC, 10A max
- Output: 230VAC, 10A max per channel
- 10A maximum combined output current
US/Canada, UL/CSA
- Input: 110VAC, 15A max
- Output: 110VAC, 15A max per channel
- 15A maximum combined output current

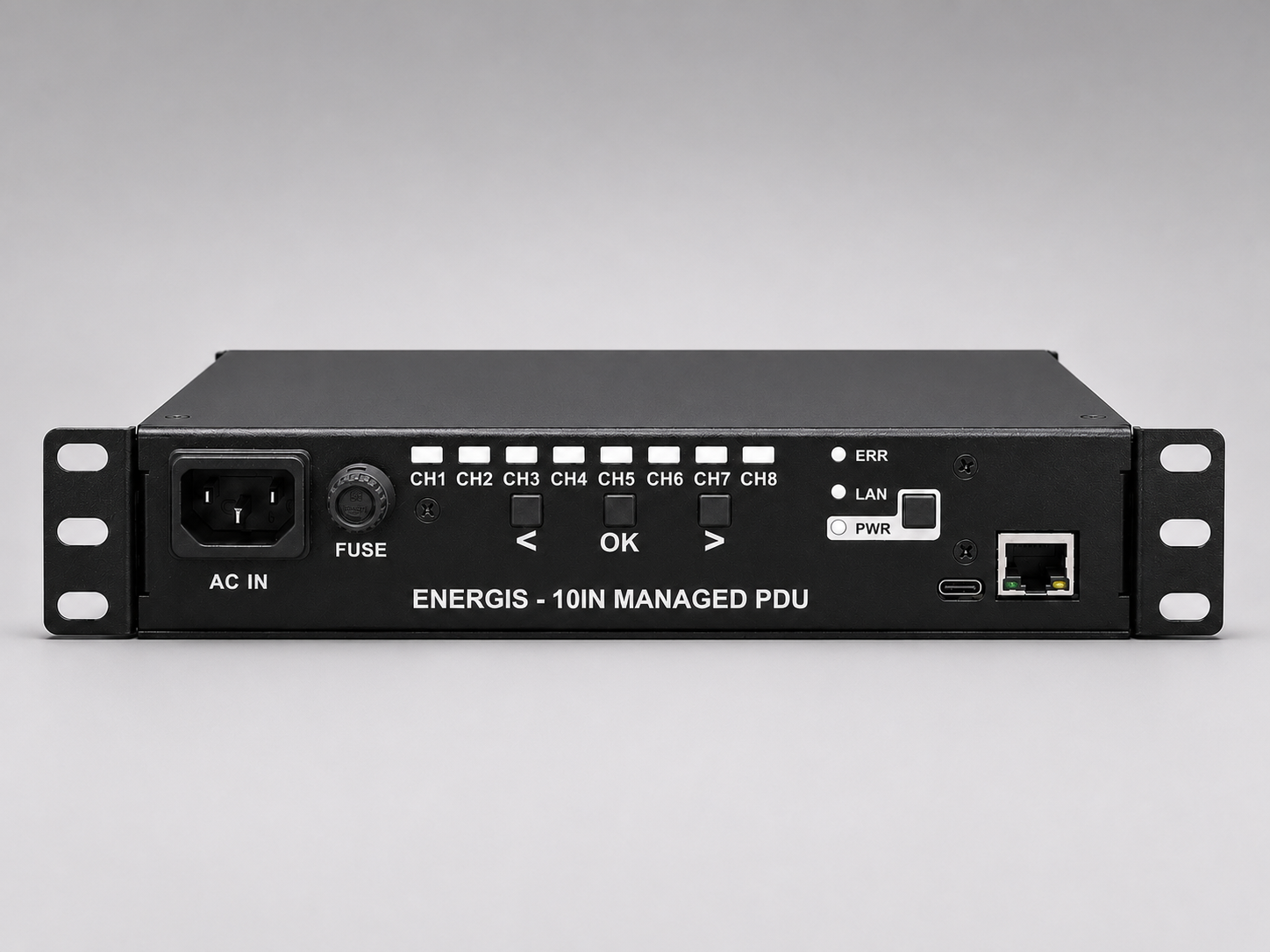

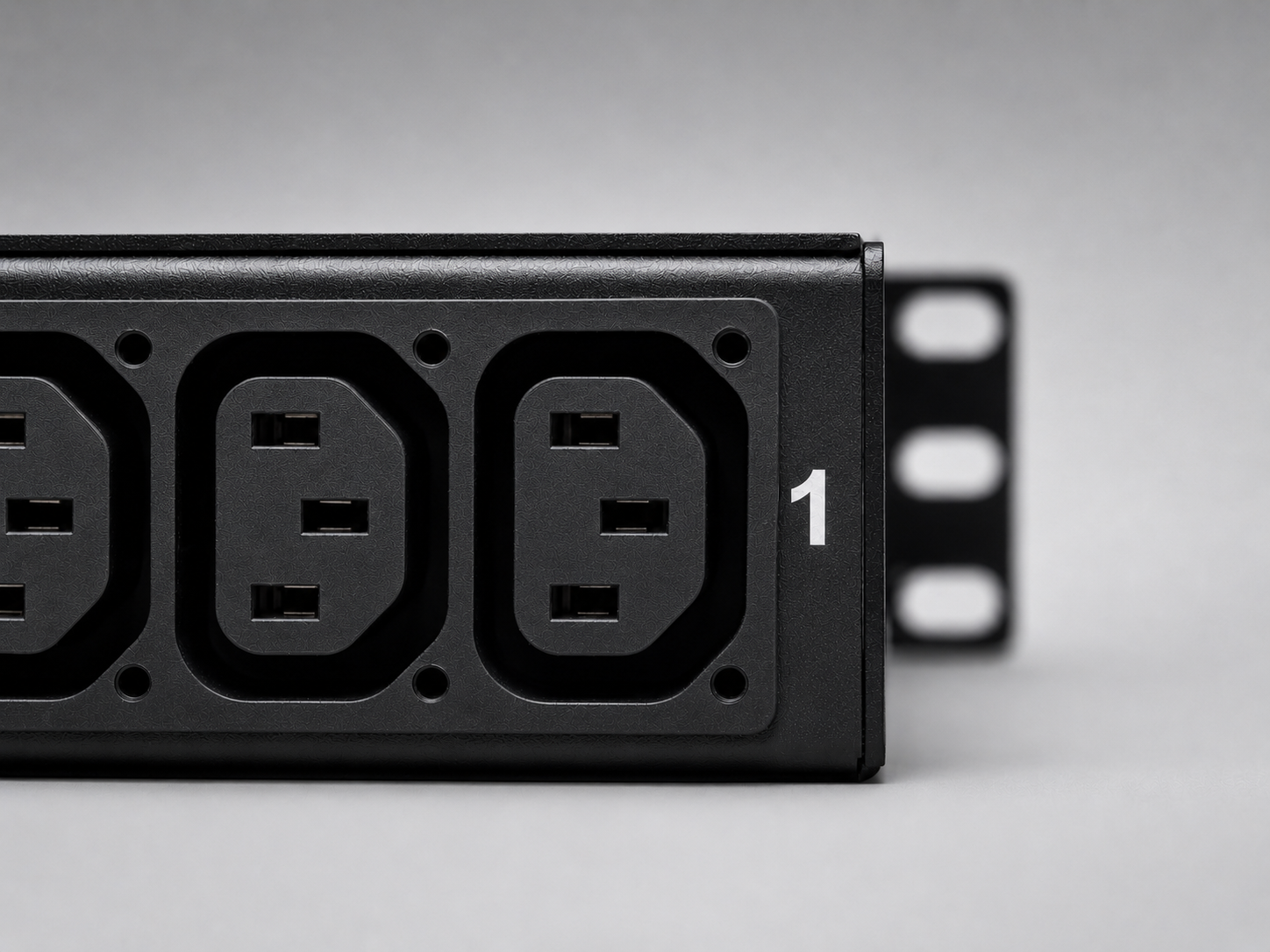

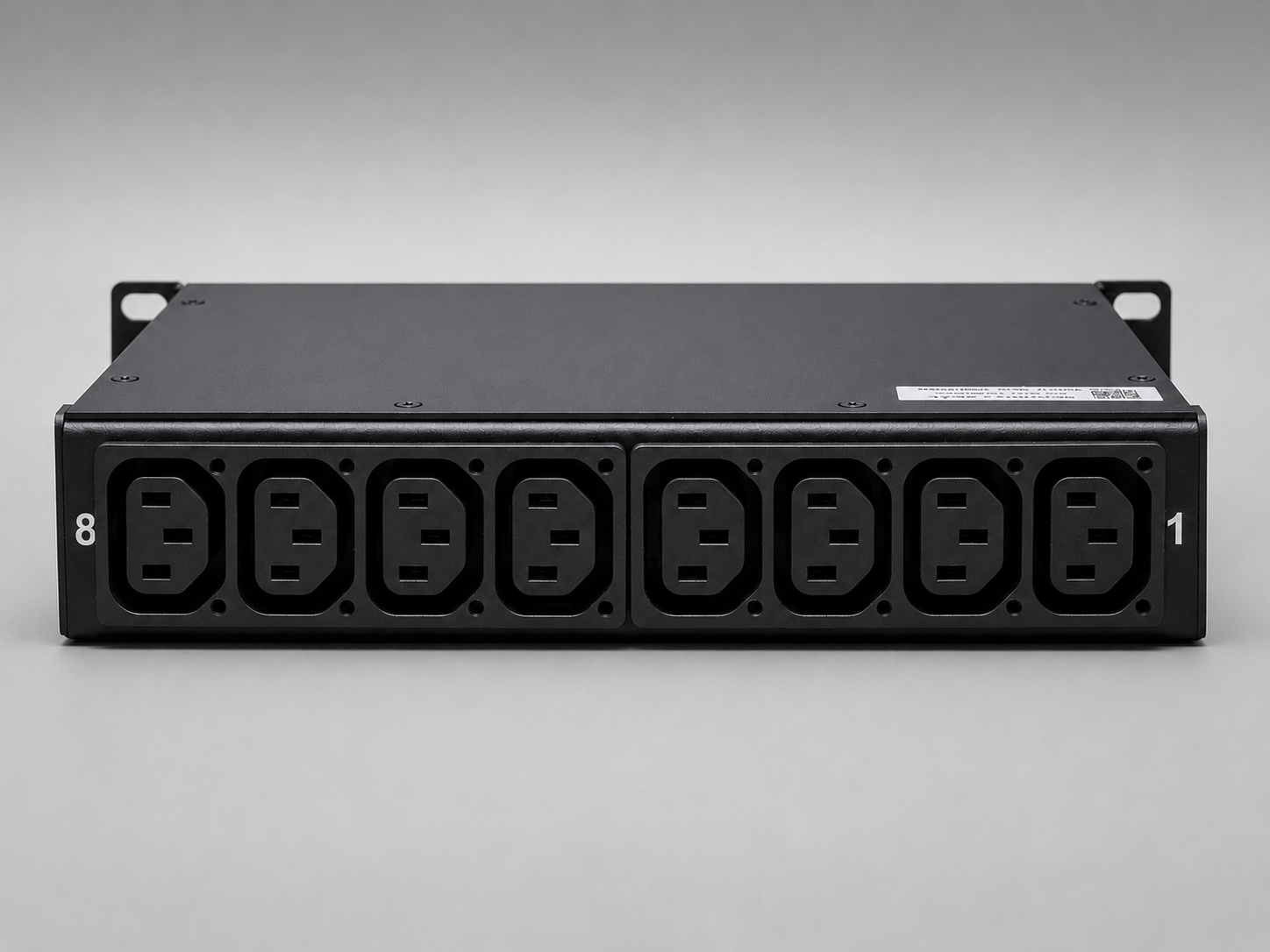

Images
Initial ENERGIS 10 inch product images.
Documentation
Manuals and technical reference material.
