BladeCore-M54E
RP2354B controller module with integrated Ethernet.
BladeCore-M54E is a compact embedded controller module for carrier-board designs that need RP2354B processing, wired Ethernet, onboard memory, and direct USB access in a modular M.2-style format.
Available soon
Ethernet-enabled controller core for custom hardware.
BladeCore-M54E is intended for embedded systems where the controller module should be separated from the carrier board, making the main processor, memory, USB access, and Ethernet interface reusable across multiple hardware designs.
Specifications
Core product information for the BladeCore-M54E module.
Module BladeCore-M54E
Microcontroller RP2354B
Network 100BASE Ethernet with W5500 controller
Memory
- 16 MB external QSPI flash
- 256 kbit I2C EEPROM
USB
- Carrier-board USB path
- Onboard USB-C connector
Power
- 5 V input
- 3.3 V input through the M.2 edge connector
Interfaces
Primary connection paths exposed by the module.
Ethernet
- Integrated W5500 Ethernet controller
- Integrated PHY
- Wired network connectivity
USB
- Carrier-board USB connection
- Onboard USB-C connection
- Automatic USB path selection
M.2 edge connector
- Power
- GPIO
- USB
- Ethernet
- Module signals

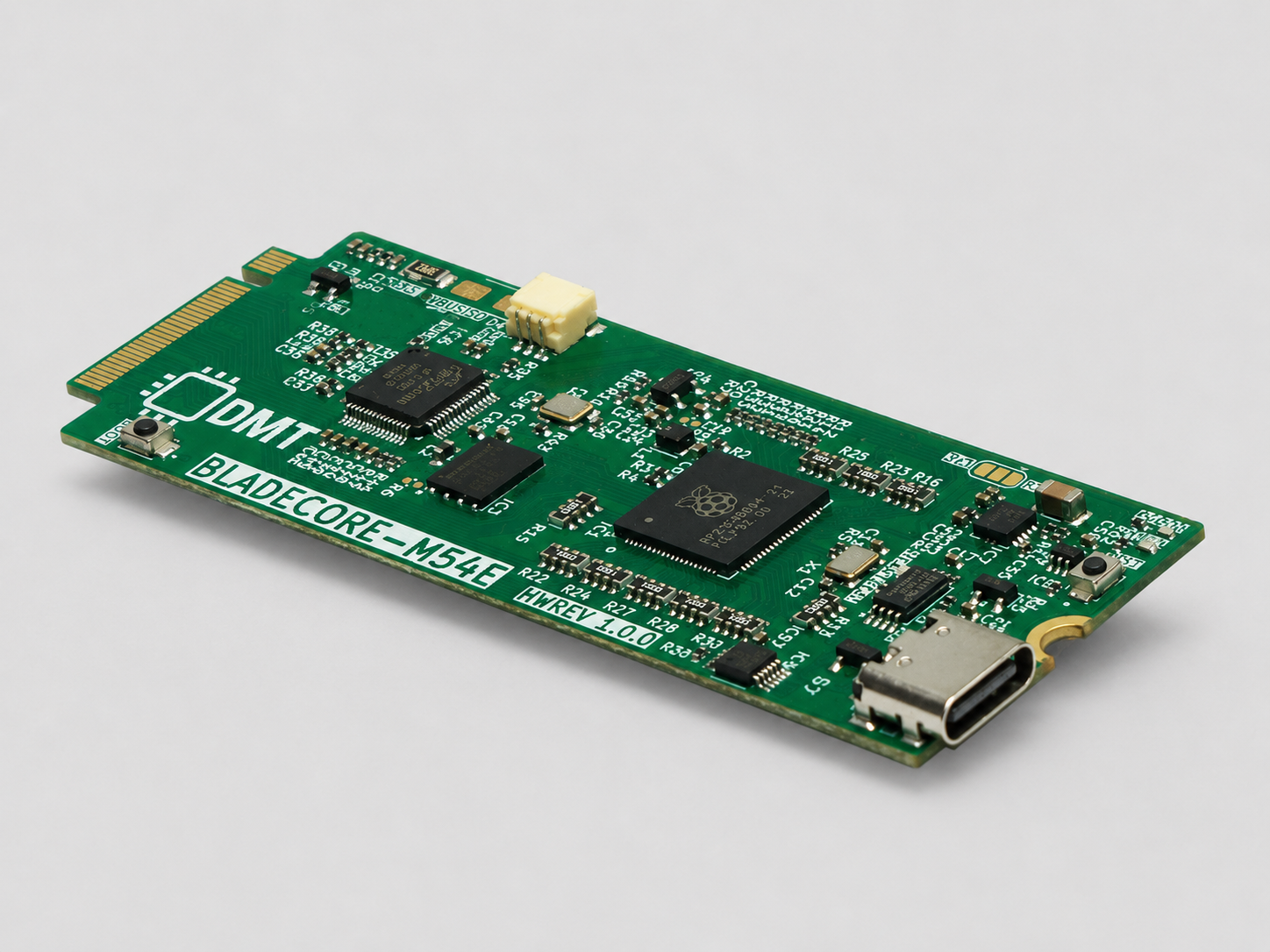

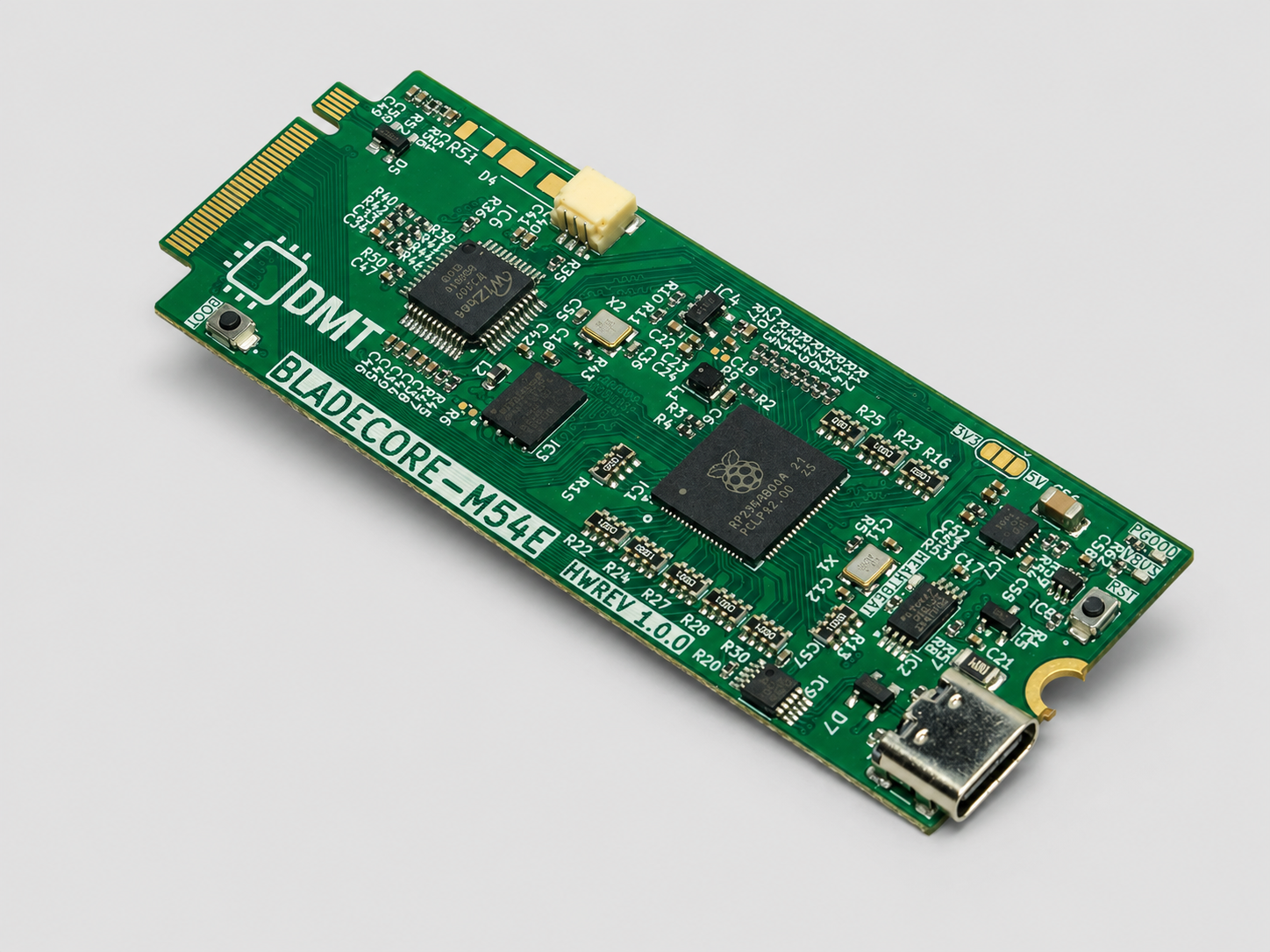

Images
