Embedded device

BladeCore-M54C

RP2354B controller module with integrated CAN.

BladeCore-M54C is a compact embedded controller module for carrier-board designs that need RP2354B processing, CAN connectivity, onboard memory, and direct USB access in a modular M.2-style format.

User manual Heartbeat example CAN firmware
BladeCore-M54C controller module

Available soon

CAN-enabled controller core for custom hardware.

BladeCore-M54C is intended for embedded systems where the controller module should be separated from the carrier board, making the main processor, memory, USB access, and CAN interface reusable across multiple hardware designs.

Specifications

Core product information for the BladeCore-M54C module.

Module BladeCore-M54C
Microcontroller RP2354B
CAN
  • MCP2515T-I/ML CAN controller
  • TCAN1044AVDRBRQ1 CAN transceiver
  • Onboard 120 Ohm termination
Memory
  • 16 MB external QSPI flash
  • 256 kbit I2C EEPROM
USB
  • Carrier-board USB path
  • Onboard USB-C connector
Power
  • VBUS / 5 V / 3.3 V input

Interfaces

Primary connection paths exposed by the module.

CAN
  • MCP2515T-I/ML controller
  • TCAN1044AVDRBRQ1 transceiver
  • SPI interface to MCU
  • Reset and interrupt signals
  • ESD protection
USB
  • Carrier-board USB connection
  • Onboard USB-C connection
  • Automatic USB path selection
M.2 edge connector
  • Power
  • GPIO
  • USB
  • CAN
  • Module signals

BladeCore-M54C product images.

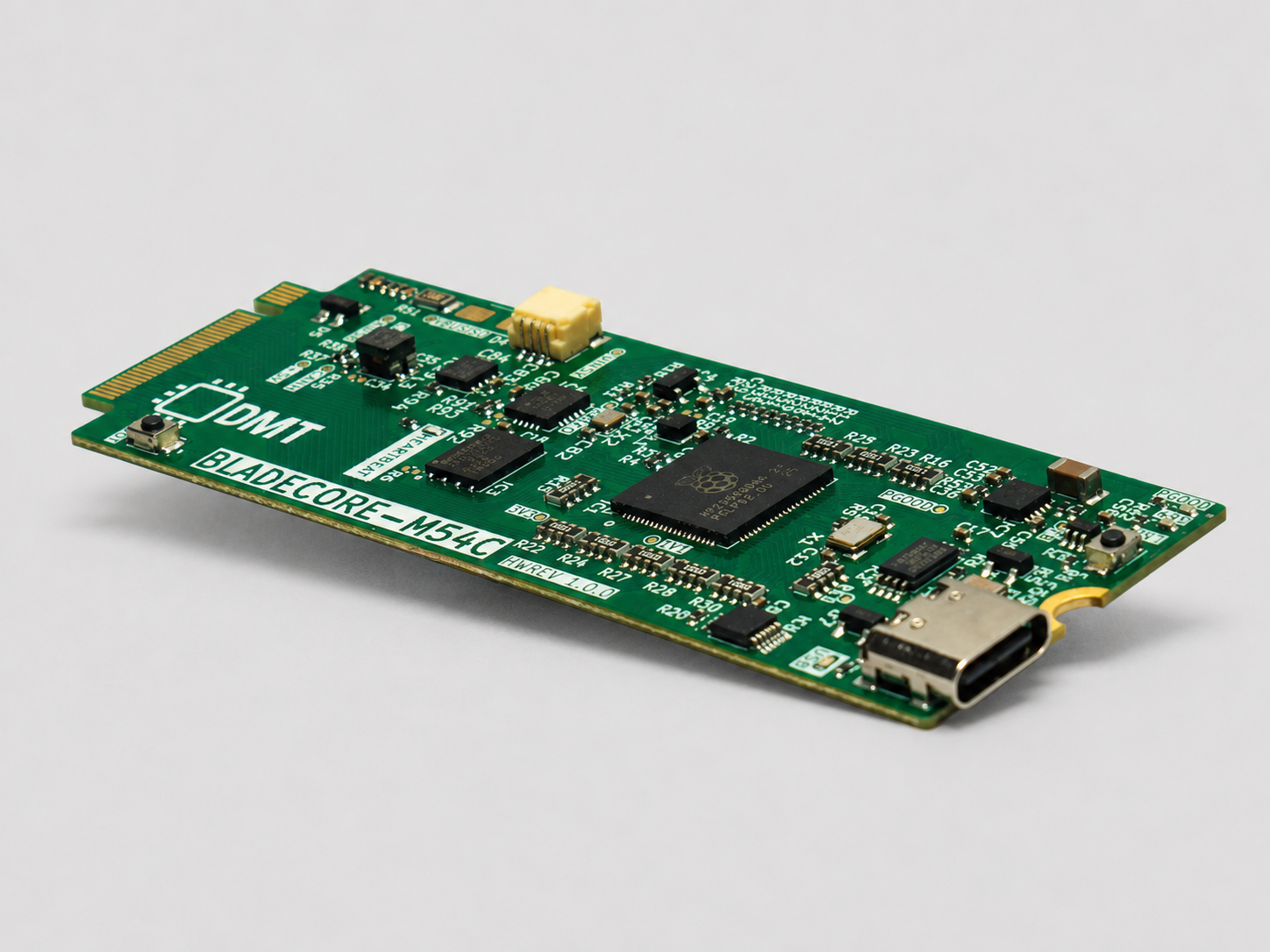

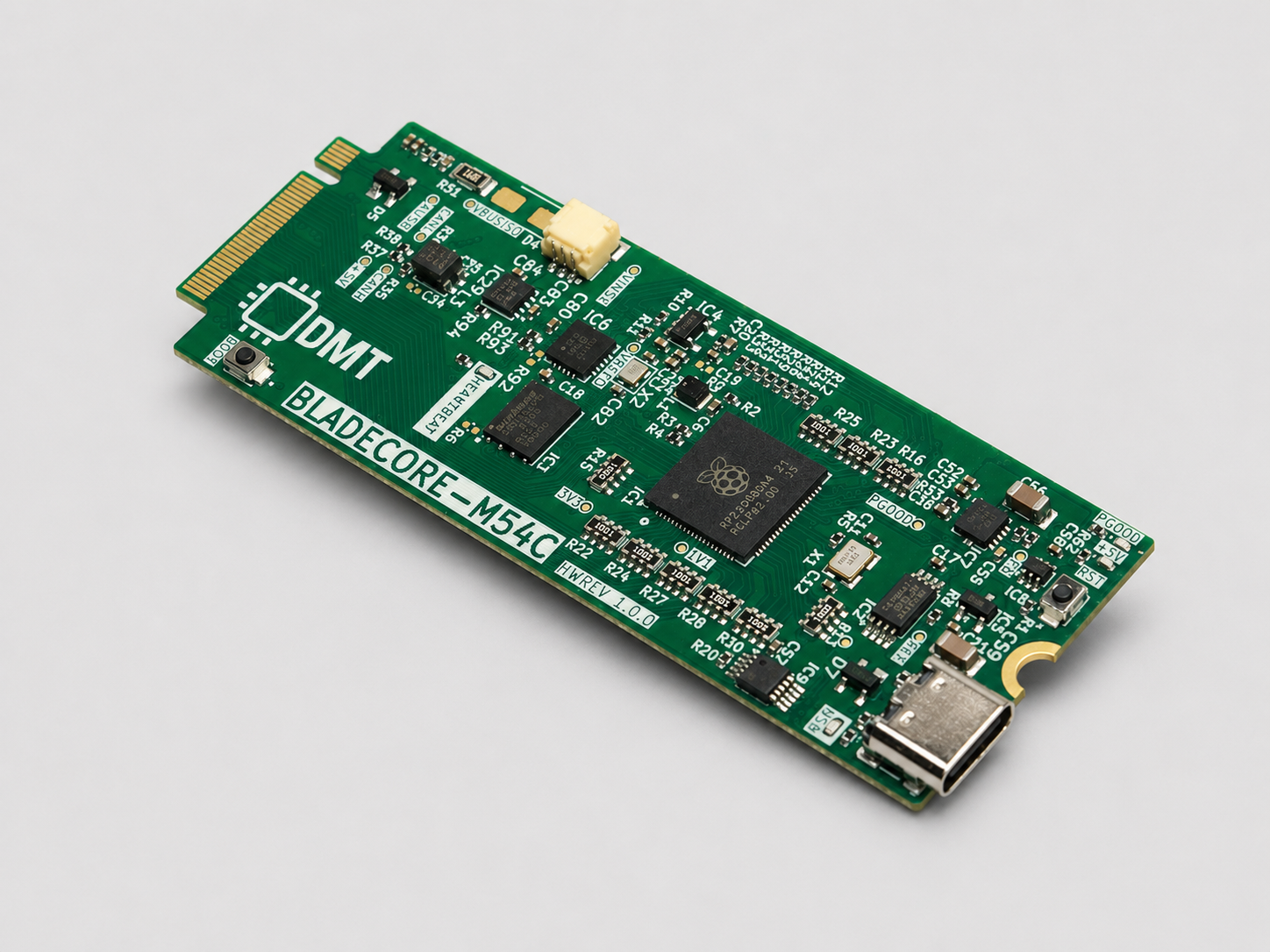

BladeCore-M54C controller moduleBladeCore-M54C angled product viewBladeCore-M54C alternate angled product view
